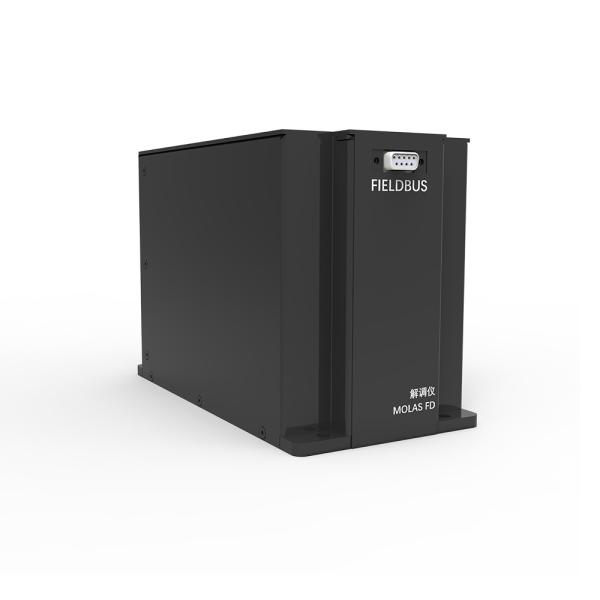

    15W 50%-90% IP Protection Wind Measurement Mast Fatigue Monitoring

    Ask Lasest Price
    Brand Name : MOVELASER
    Model Number : Molas FD
    Price : Dollar 1W$+ (Price consultation customer service)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set ,1 month
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    15W 50%-90% IP Protection Wind Measurement Mast Fatigue Monitoring

    IP protection level 50%~90% performance parameters


    1,Product introduction


    After the junction box is installed, the sensor tail wire needs to be positioned and fixed. Wipe the blade surface clean with a rag at the wiring location. The sensor tail wire should be twisted along the baffle and the connection of the blade as far as possible without bending, and extended and circled according to the actual situation, and fixed on the blade root baffle with Sika glue to ensure that the sensor tail wire is not entangled.


    2,Features


    ① Simple installation and easy maintenance
    ② High precision
    ③ Flexible and portable
    ④ Data is safe and reliable


    3,Application field


    Blade root load measurement
    Independent pitch
    Blade derating
    Fatigue monitoring
    ⑤ Fan control


    4,Performance Parameter



    Demodulator performance parameters


    IP protection class

    IP20

    Maximum working altitude

    3000m

    Operating temperature

    -20~60℃

    Storage temperature

    -40~80℃

    Environment humidity

    -180°~180°

    Wind speed accuracy

    5%~9RH5%

    Powered by

    22-26VDC

    Power consumption

    <15W



    Sensor performance parameters


    IP protection class

    IP67

    Maximum working altitude

    3000m

    Operating temperature

    -40~50℃

    Storage temperature

    -40~80℃

    Environment humidity

    0~95%RH

    Sensor type

    Fiber Bragg Grating

    Measuring range

    ±1500με

    Grating reflectivity

    -0.5g~0.5g

    IP protection level

    50%~90%


    5,External interface of demodulator


    LAN: network interface, which can be used for the connection of the device network; the network cable can be connected to the computer, and the device parameter setting, status observation and data transmission can be performed through the device client software.
    CANopen: CAN interface, which transmits data externally through the CANopen protocol.
    POWER: Power interface, which supplies power to the whole device.
    1-16: Sensor interface, used to connect with different fiber grating sensors (the number of channels is customized according to customer requirements).
    FIELDBUS: DB9 interface, supports external data transmission through Profibus, RS485, etc.
