    OEM 9.5m Height 12 Floors Wind Speed Direction Lidar System

    Ask Lasest Price
    Brand Name : MOVELASER
    Model Number : Molas B300M
    Price : Dollar 13W$+ (Price consultation customer service)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set ,1 month
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    OEM 9.5m Height 12 Floors Wind Speed Direction Lidar System

    Wind speed and direction at the height of 12 floors Lidar System

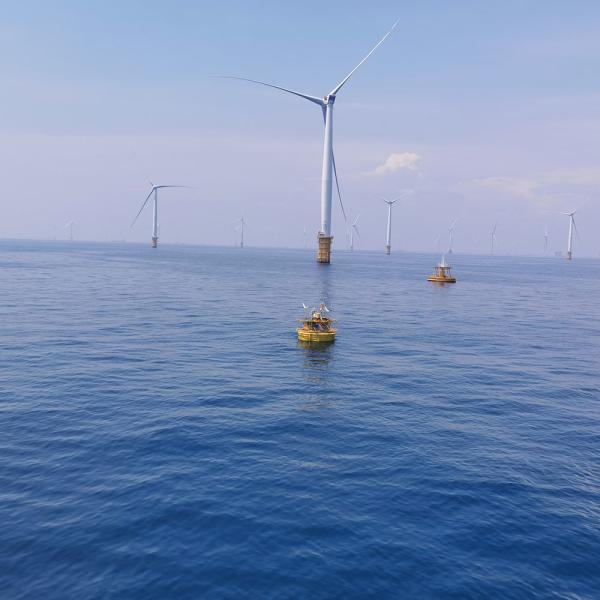

    2.1 Floating lidar wind measuring device Both floating platform and lidar should be localized, and the technical equipment will not be affected by foreign countries.
    2.2 The floating platform should be easy to move and relocate. If necessary, Party B needs to cooperate with Party A to drag the floating lidar wind measurement device to the rewind measurement location designated by Party A for wind measurement. The cost involved is negotiated by both parties according to the distance.


    General parameters
    Powered by24V DC / 100~240V
    Power70W
    Size682mm x 520mm x 641mm
    Weight<75kg
    Range of working temperature-40℃ ~ 50℃(with over temperature protection)
    Operating humidity range0% to 100%
    Protection classIP67 (complete machine)
    Eye safetyClass 1M (EN60825-1)

    Measurement parameters
    Measuring distance30~300m
    Measurement layer12
    Sampling rate1Hz
    Wind speed measurement accuracy0.1m/s
    Wind direction measurement accuracy
    Wind speed measurement range0~75m/s
    Wind direction measurement range0~360°
    Sweep cone angle28°

    Data parameter
    Data outputHorizontal wind speed, vertical wind speed, wind direction
    Timestamp, GPS, temperature, humidity and pressure, statistics
    Data FormatASCII
    CommunicationEthernet (100BASE-TX)
    3G/4G
    WiFi, satellite communication (optional)
