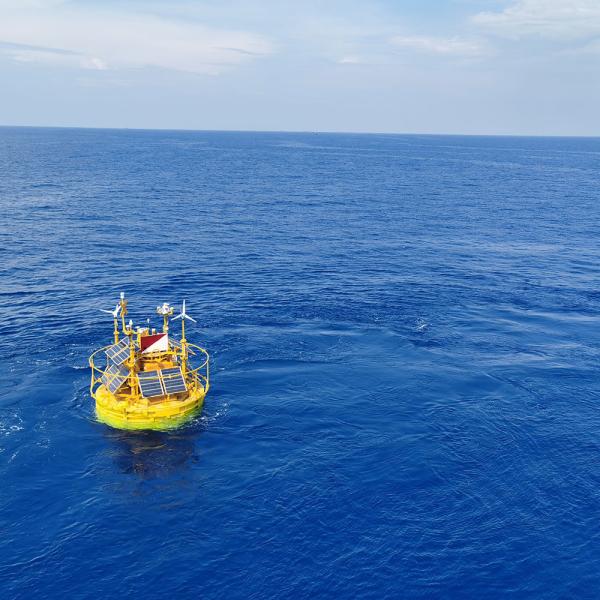

    Marine Grade Epoxy Coating Floating Lidar System Wave Height 14m

    Ask Lasest Price
    Brand Name : MOVELASER
    Model Number : Molas B300M
    Price : Dollar 13W$+ (Price consultation customer service)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set ,1 month
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    Marine Grade Epoxy Coating Floating Lidar System Wave Height 14m

    Marine grade epoxy coating Maximum wave height 14m


    Data quality requirements:
    During the equipment life cycle, the data integrity rate shall not be lower than 95%, and the continuous failure time shall not exceed 5 days. Specifically, it shall be implemented according to the requirements of the bidding documents, the terms of the contract and the commitment of the bidders in the bidding documents.


    2,Product parameters

    General parameters
    Powered by24V DC / 100~240V
    Power70W
    Size682mm x 520mm x 641mm
    Weight<75kg
    Range of working temperature-40℃ ~ 50℃(with over temperature protection)
    Operating humidity range0% to 100%
    Protection classIP67 (complete machine)
    Eye safetyClass 1M (EN60825-1)

    Measurement parameters
    Measuring distance30~300m
    Measurement layer12
    Sampling rate1Hz
    Wind speed measurement accuracy0.1m/s
    Wind direction measurement accuracy
    Wind speed measurement range0~75m/s
    Wind direction measurement range0~360°
    Sweep cone angle28°

    Data parameter
    Data outputHorizontal wind speed, vertical wind speed, wind direction
    Timestamp, GPS, temperature, humidity and pressure, statistics
    Data FormatASCII
    CommunicationEthernet (100BASE-TX)
    3G/4G
    WiFi, satellite communication (optional)
