    Onshore Wind Iris Lidar Anticorrosion Grade Iso C5 Molas Nl

    Ask Lasest Price
    Brand Name : MOVELASER
    Model Number : Molas NL
    Certification : DNV GL , Intertek , RISO Dtu
    Price : Dollar 5W$+ (Price consultation customer service)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set ,1 month
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    Onshore Wind Iris Lidar Anticorrosion Grade Iso C5 Molas Nl

    lidar onshore wind Anticorrosion Grade ISO C5 Molas NL


    | Product introduction


    Molas NL series is a nacelle wind lidar independently developed for the intelligent application scheme of wind power customers. It is a laser remote sensing wind measurement device installed on the top of the wind turbine nacelle. The lidar adopts the coherent detection system, and based on the principle of laser Doppler frequency shift, realizes the accurate measurement of 50m-200m / 400m / 750m vector wind field in front of the fan impeller.

    | Application scenarios


    1,It can achieve the purpose of optimizing load and increasing power generation.
    2,It can also be applied to functions in various automated operation scenarios such as yaw correction, power curve test, wake analysis, and intelligent field group control.


    | Product parameters

    Measure the distance

    50~200m

    Number of measured sections

    10

    Sampling frequency

    4Hz

    Wind speed measurement range

    -50 ~50m/s

    Wind direction measurement range

    -180°~180°

    Wind speed accuracy

    0.1m/s

    Accuracy of wind direction

    ±0.5°

    Measurement layer

    Simultaneously measure and output 10 distance layers


    Other

    Communication mode

    Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

    Power supply

    100 VAC~240VAC ±10% 50Hz~60Hz ±6%

    Power

    ≤300W

    Operating temperature range

    -40℃~60℃

    Survival temperature range

    -40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)

    Working humidity range

    0~100% RH

    Survival wind speed

    70m/s

    Working acceleration range

    -0.5g~0.5g

    IP protection level

    Equipment in engine room: IP54,Equipment outside engine room: IP66

    Anticorrosive

    ISO C5

    Radiation protection

    CISPR 11


    | Product Features

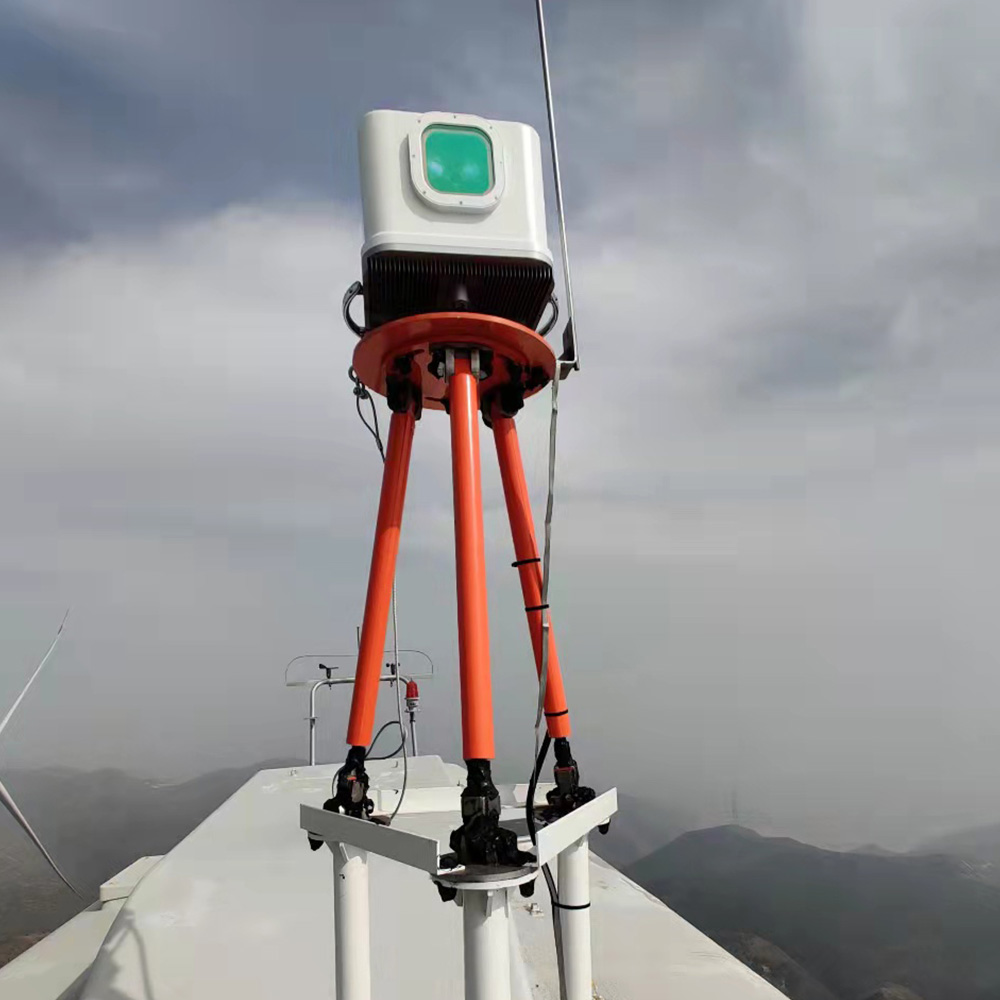

    | Product Image



    Quality Onshore Wind Iris Lidar Anticorrosion Grade Iso C5 Molas Nl for sale
