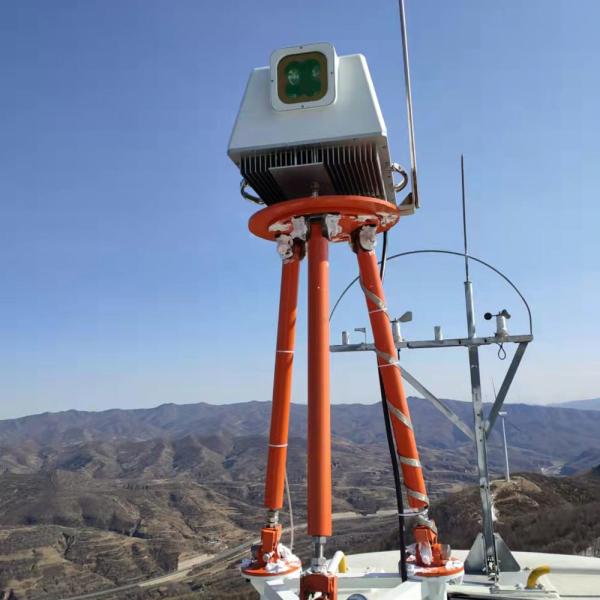

    Molas NL Offshore Wind Lidar

    Ask Lasest Price
    Brand Name : MOVELASER
    Model Number : Molas NL
    Certification : DNV GL , Intertek , RISO Dtu
    Price : Dollar 5W$+ (Price consultation customer service)
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 200 set ,1 month
    Delivery Time : 1-2 months
    • Product Details
    • Company Profile

    Molas NL Offshore Wind Lidar

    Working humidity range 0~100% RH Molas NL


    1,Summary


    The accessories required for OH installation include OH*1, M10X20 hex head bolts*6,10 flat washers*12, grounding wire*1, bow shackle*2, anti-falling rope*1, aerial plug cable*1 Wire flange *2, flange plug *1, M8X35 hex head bolt *3, 8 flat washer X6, M8 nut X3 (refer to Table 3.1 standard accessories).

    2,Performance Parameter

    Performance

    Measure the distance

    50~200m

    Number of measured sections

    10

    Sampling frequency

    4Hz

    Wind speed measurement range

    -50 ~50m/s

    Wind direction measurement range

    -180°~180°

    Wind speed accuracy

    0.1m/s

    Accuracy of wind direction

    ±0.5°

    Beam pointing accuracy

    ±0.1°


    Other

    Communication mode

    Profibus DP/Modbus TCP/ Modbus RTU/CANOPEN

    Power supply

    100 VAC~240VAC ±10% 50Hz~60Hz ±6%

    Power

    ≤300W

    Operating temperature range

    -40℃~60℃

    Survival temperature range

    -40 ℃ ~ 65 ℃ (power off),-45 ℃ ~ 65 ℃ (charged)

    Working humidity range

    0~100% RH

    Survival wind speed

    70m/s

    Working acceleration range

    -0.5g~0.5g

    IP protection level

    Equipment in engine room: IP54,Equipment outside engine room: IP66

    Anticorrosive

    ISO C5

    Radiation protection

    CISPR 11

    Weight

    OH约23Kg,DU约6Kg


    Molas NL Offshore Wind Lidar
